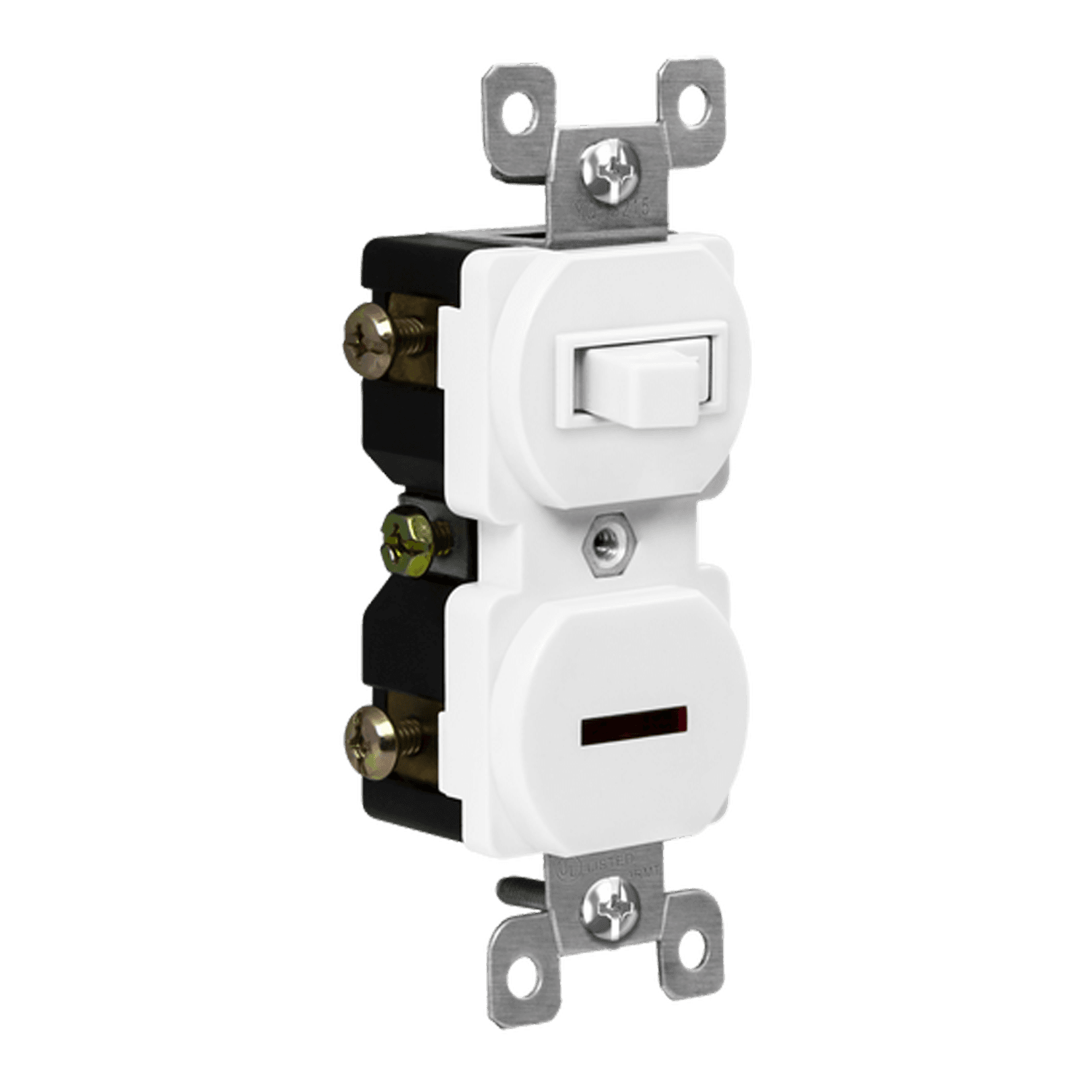

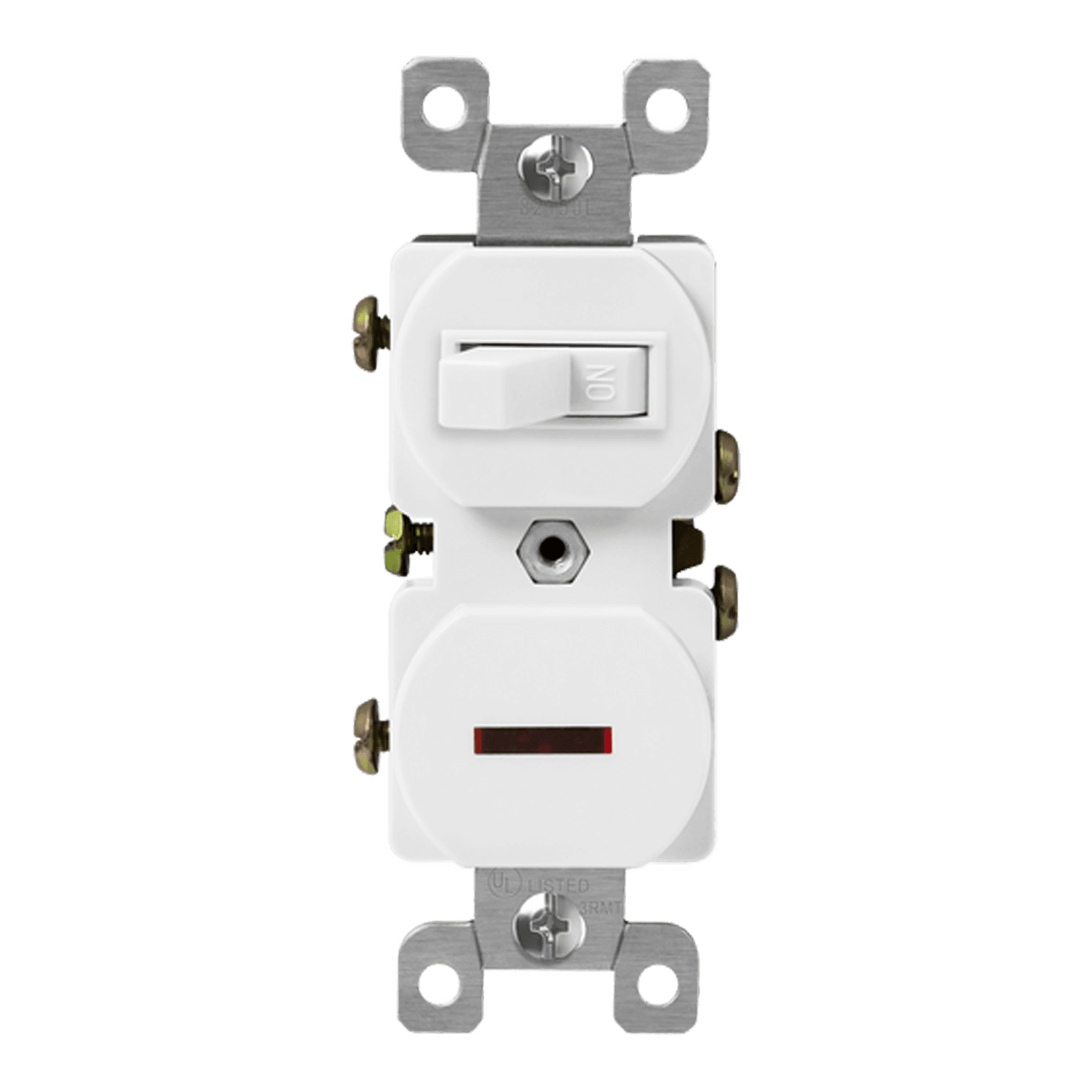

Combination 15A Switch/Pilot Light, Single Pole
82150LSKU: 82150L-W
Combination devices are fit for commercial or residential use. This device’s long, broad mounting strap virtually eliminates the need for floating installations. Its clamp terminals accept solid or stranded 12 or 14 AWG wires which can be stripped with a wire stripper to make installation faster and easier.
Available Colors
Terminal screws backed out ready for wiring
Side wire terminals; use 12 or 14 AWG copper wires only
Optional grounding with self-grounding clip or green terminal screw
All devices fit standard wallboxes
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
