Half Controlled 20A Tamper-Resistant Decorator Style Plug Load Receptacle, 5-20R
63200-TR-PLHSKU: 63200-TR-PLH-W

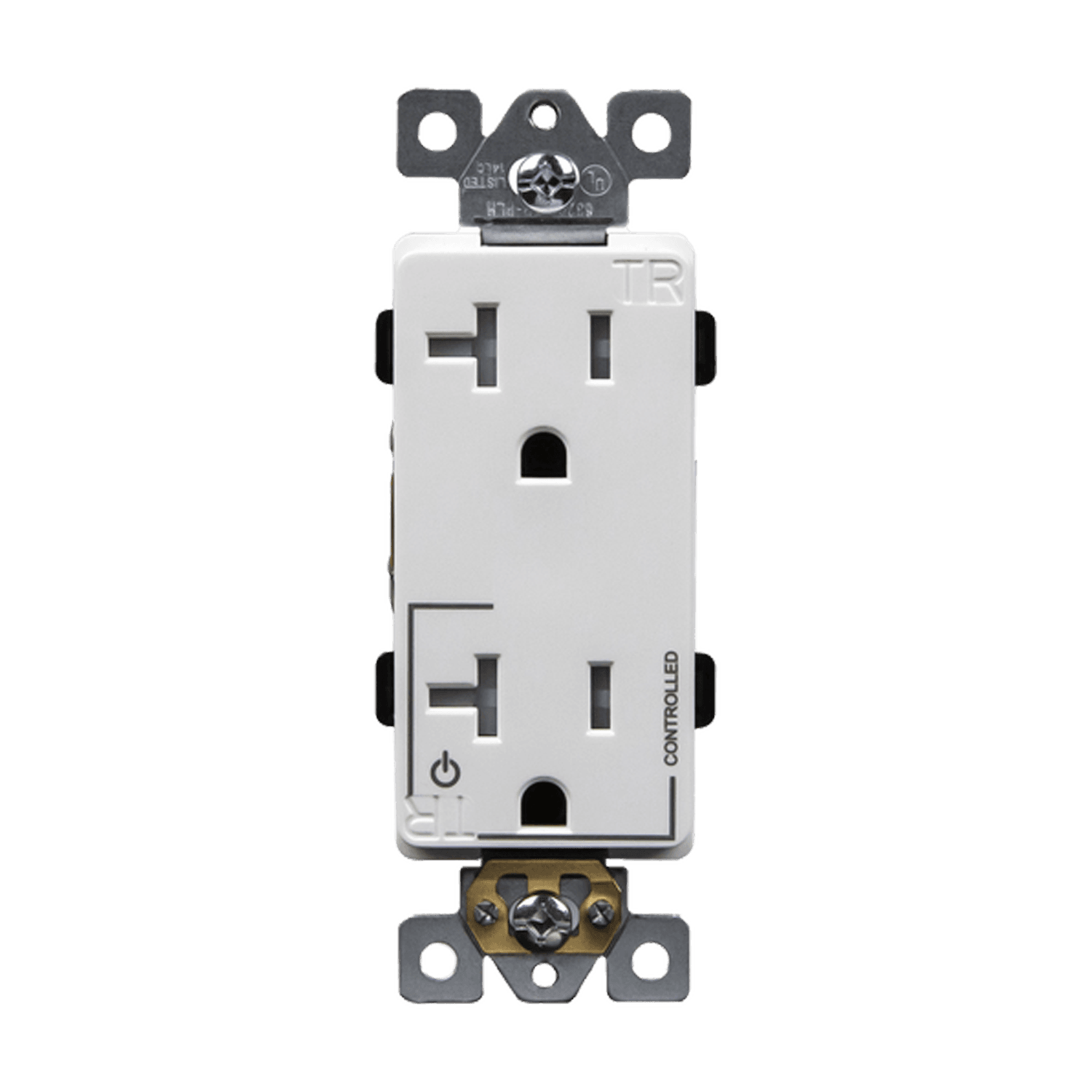

The 63200-TR-PLH is a receptacle with “controlled” marked on one of the two outlets on the receptacle. Tamper-resistant shutters prevent insertion of foreign objects into the device. The controlled outlet is intended to be powered by an external sensor or switch.
Available Colors
Made of thermoplastic material
Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Optional grounding with self-grounding clip or green terminal screw
Break-off tabs for easy two-circuit conversion
Push-in #14 AWG Cu solid wire for 15A branch circuit only
Removable yoke tabs for ideal alignment
Terminal screws backed out ready for wiring
Combination Slot/Phillips head mounting and terminal screws ease installation
Heavy-duty impact resistant thermoplastic construction for long service life in commercial applications
Back and side-wiring terminals accept both solid and stranded wire to ease installation
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
Compliant with 2017 NEC Article 406.12
