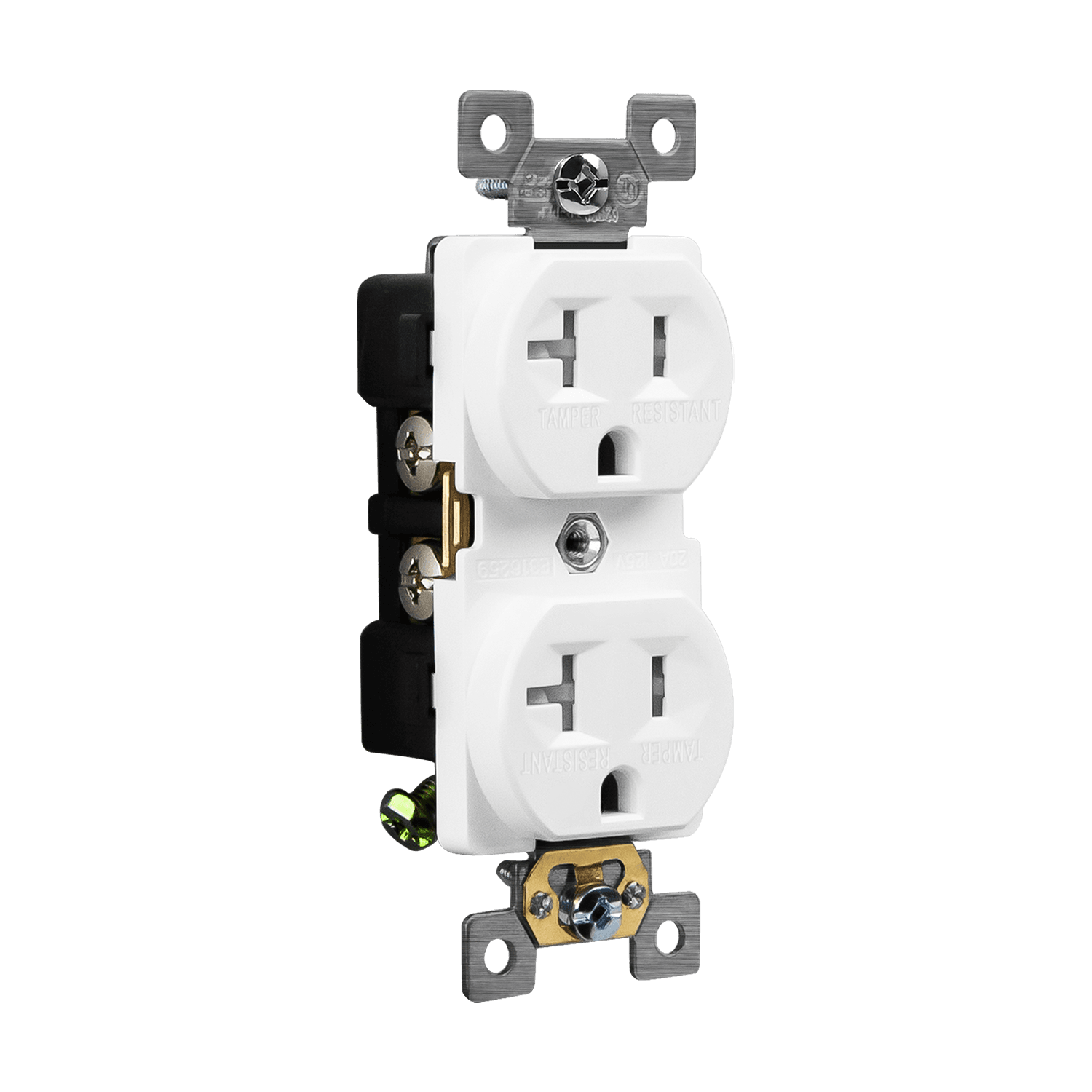

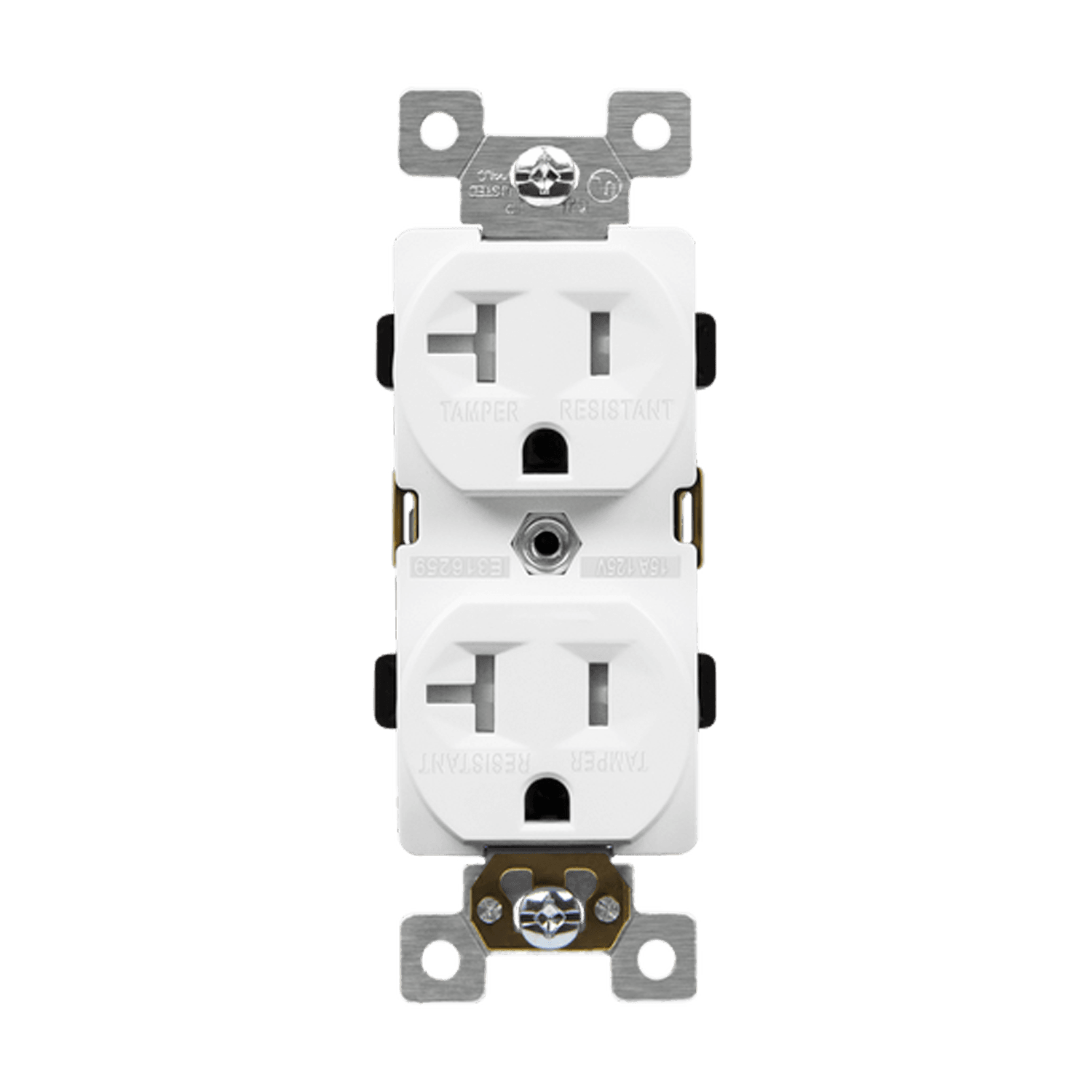

Industrial Grade Heavy Duty 20A Tamper-Resistant Duplex Receptacle, 5-20R
62080-TRSKU: 62080-TR-W
Industrial grade receptacles are made of durable polycarbonate thermoplastic and have a smooth, easy to clean surface. Tamper-resistant shutters prevent insertion of foreign objects into the device. It is back wired with break-off tabs for easy two-circuit conversion.
Available Colors
Self-grounding clip
Impact resistant thermoplastic cover and body
Back wired
Ground termination-brass strap version
Break-off tabs for easy two-circuit conversion
Two side barriers cover the wire terminals for insulation and isolation function, hospital grade only
Use only with 10AWG to 14AWG wires
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
