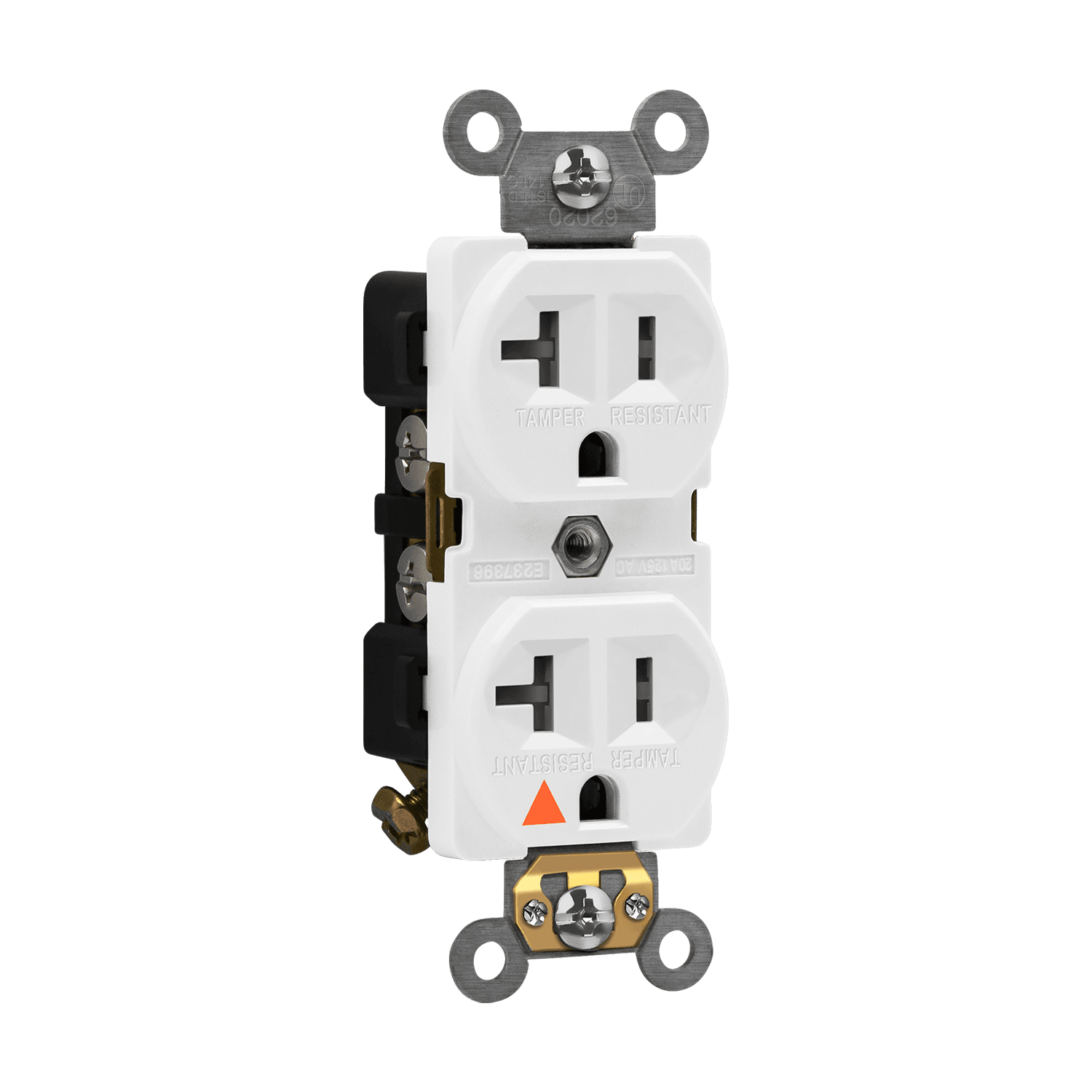

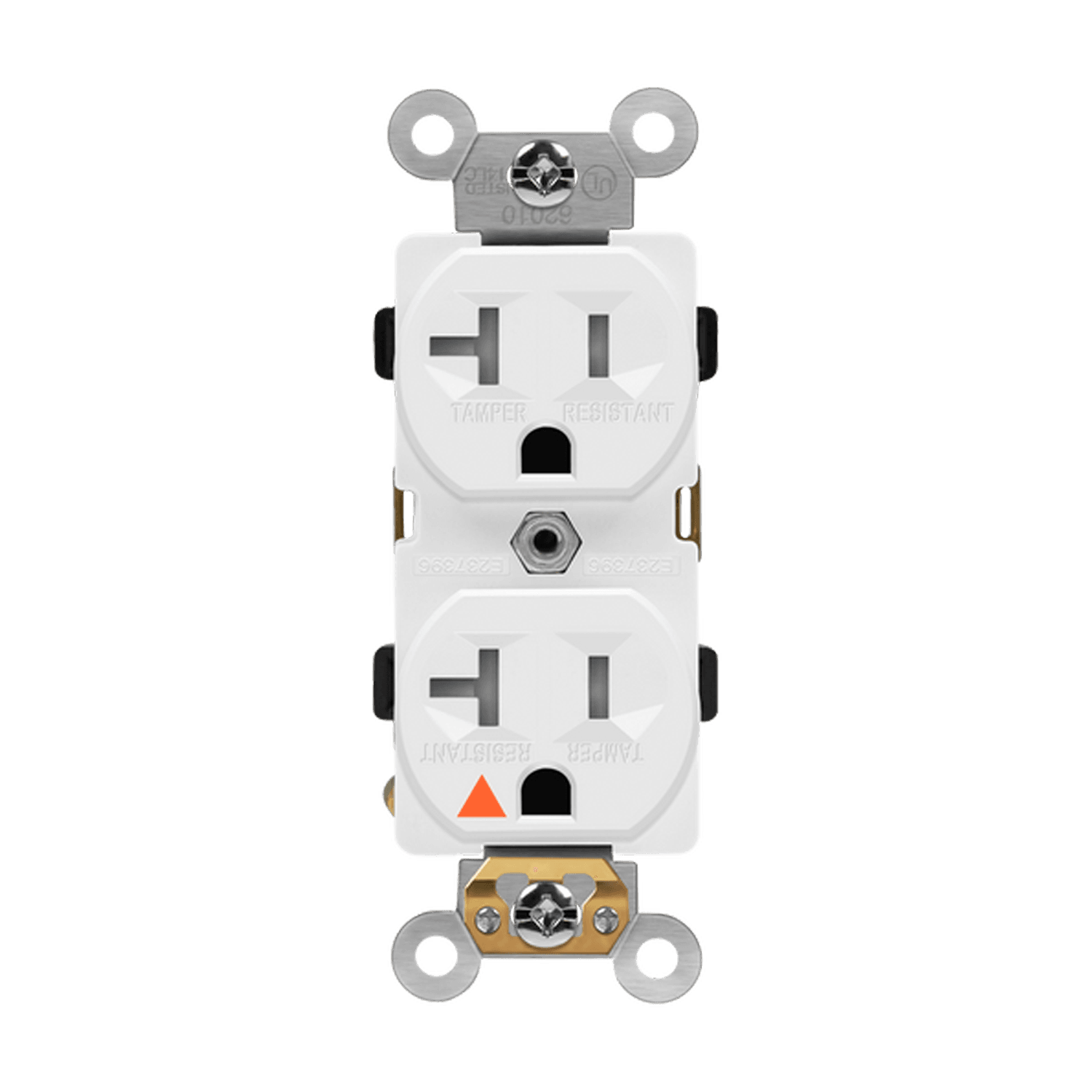

Industrial Grade Isolated Ground Heavy Duty 20A Tamper-Resistant Duplex Receptacle, 5-20R
62010-TRSKU: 62010-TR-W
The ENERLITES heavy duty receptacle is manufactured to withstand the harsh conditions typically associated with industrial environments. Tamper-resistant shutters prevent insertion of foreign objects into the device. This industrial grade isolated ground receptacle is 20 Amp, NEMA 5-20R, and is designed specifically for use in hospitals and commercial/industrial settings.
Available Colors
Self-grounding clip
Impact resistant thermoplastic cover and body
Back wired
Ground termination-brass strap version
Break-off tabs for easy two-circuit conversion
Two side barriers cover the wire terminals for insulation and isolation function, hospital grade only
Use only with 10AWG to 14AWG wires
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
