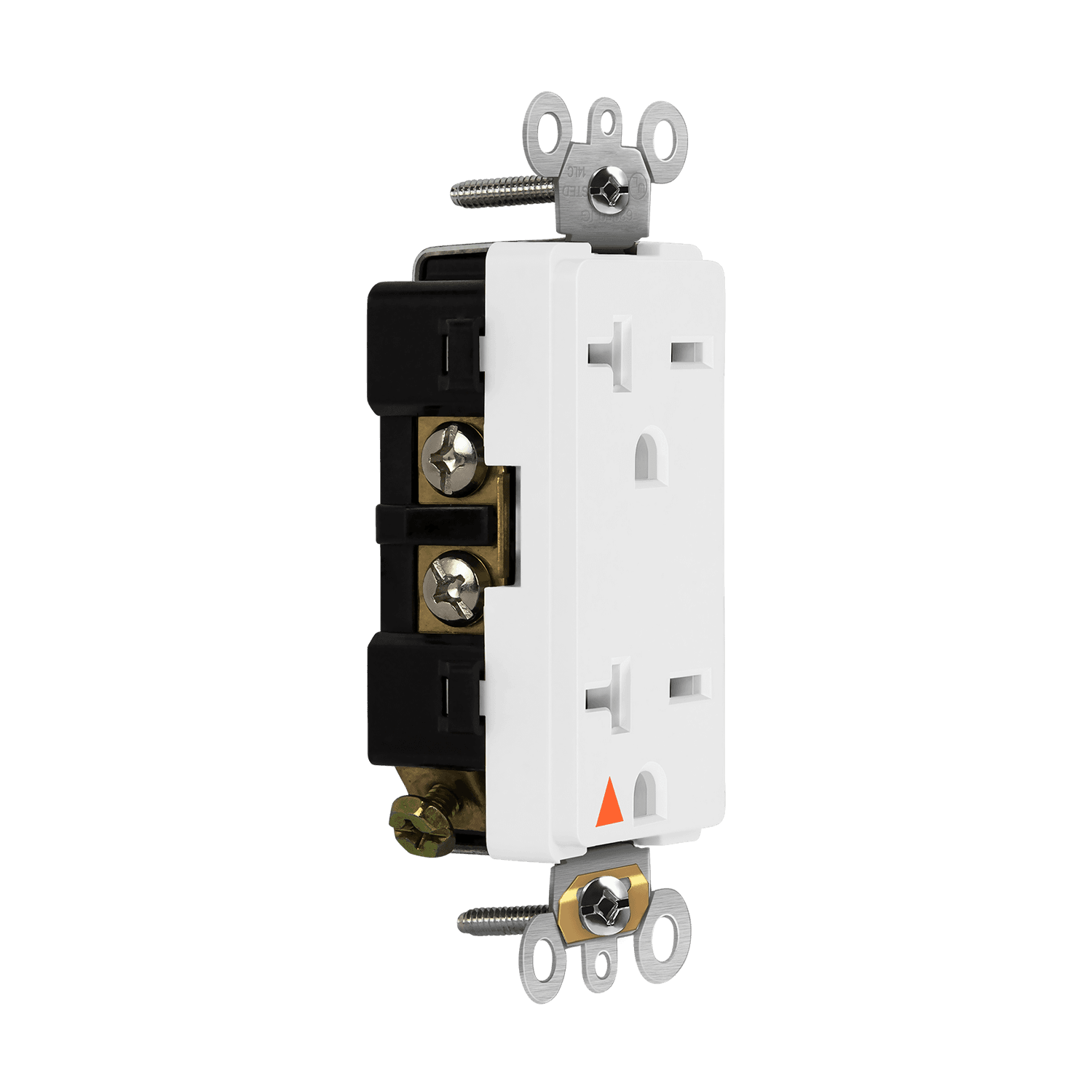

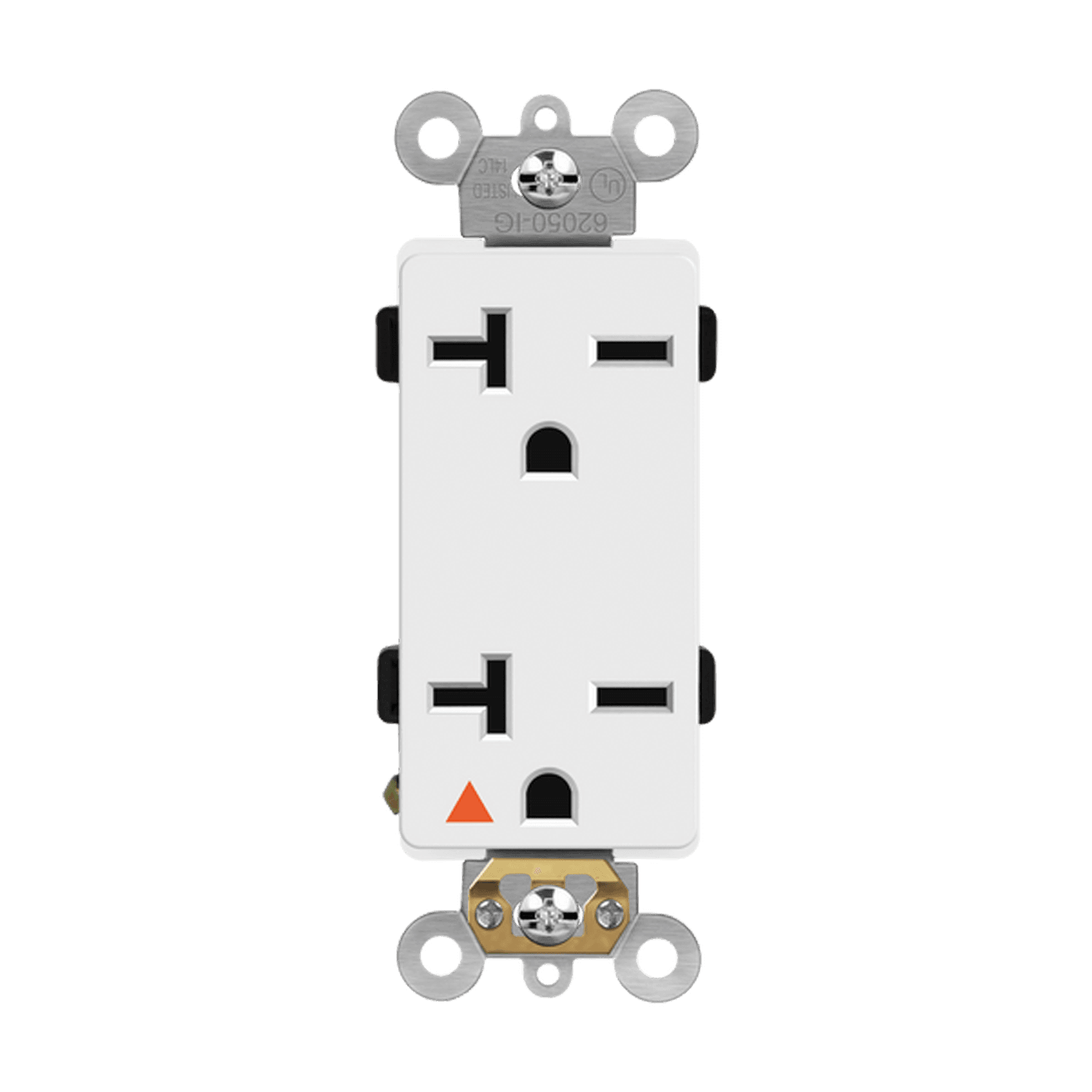

Isolated Ground Decorator Duplex Receptacle, 6-20R
62050-IGSKU: 62050-IG-W
The ENERLITES heavy duty receptacle is manufactured to withstand the harsh conditions typically associated with industrial environments. This industrial grade isolated ground receptacle is 20 Amp, NEMA 6-20R, and is designed specifically for use in hospitals and commercial/industrial settings.
Available Colors
Self-grounding clip
Impact resistant thermoplastic cover and body
Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Back wired
Ground termination-brass strap version
Break-off tabs for easy two-circuit conversion
Optional grounding with self-grounding clip or green terminal screw
Use only with 10AWG to 14AWG wires
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
Compliant with 2017 NEC Article 406.12
