Low Voltage Dimmer Switch

LVD-101SKU: LVD-101-W

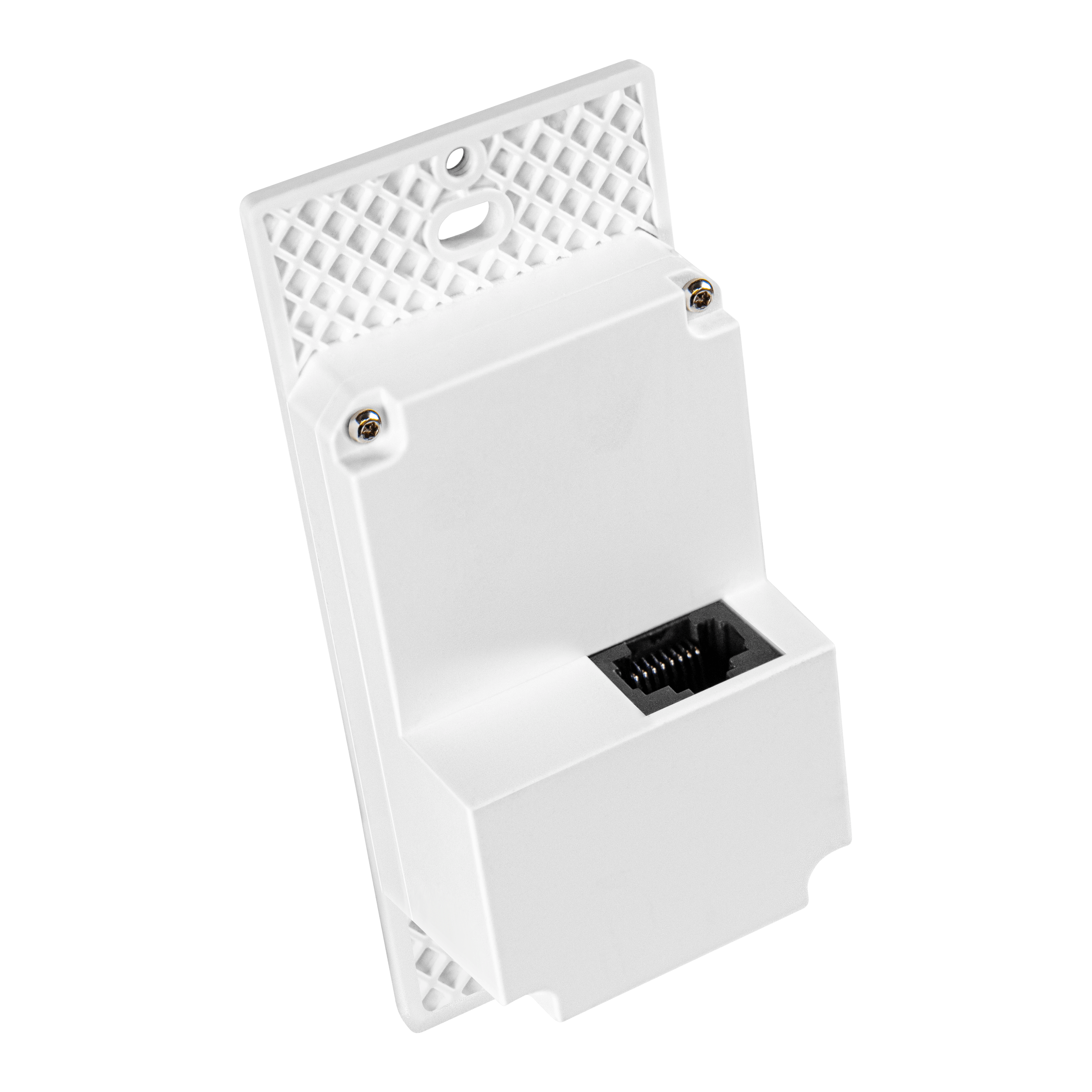

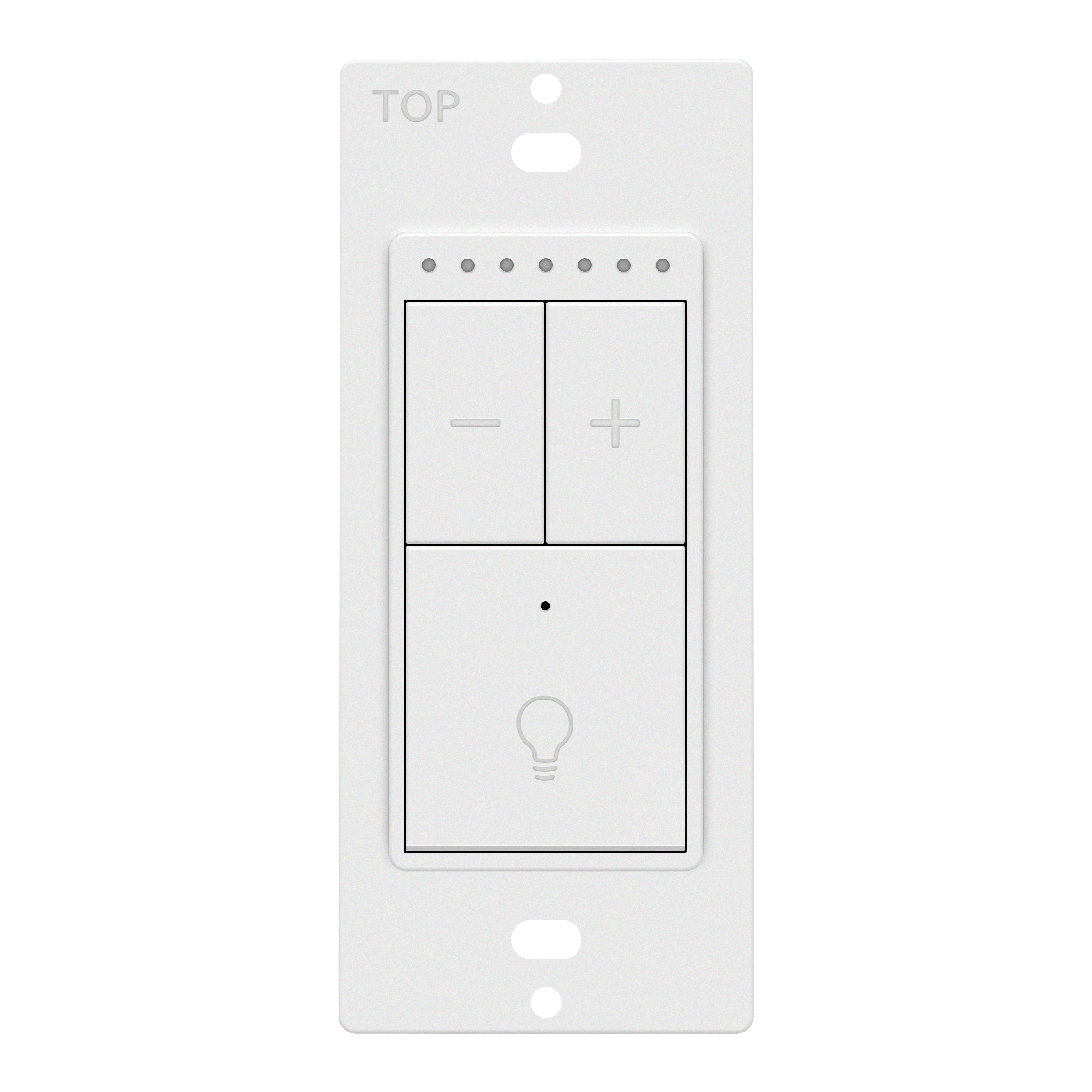

The Enerlites LVD-101 is a low voltage LED dimmer switch, used to control various 0-10V dimmable LED panels and lights. The LVD-101 must be used with LV-CAT5 to receive 24V supplied by the MPP-24 Power Pack. They also work with the MPC-50L Low Voltage Occupancy Sensor and MPL-010 Daylight Sensor, to recognize and react to motion sensing and automatic brightness adjustments of LED lights.

Available Colors

1-, 2-, 3-, and 4-button low voltage switch

1-2 load 0-10V dimmer switch

Blue LED indicator on each button can be used as a locator light or as a status indicator

Cat5 terminals

Fits into decorator wall plates

California Title 24, Part 6

2-year warranty
