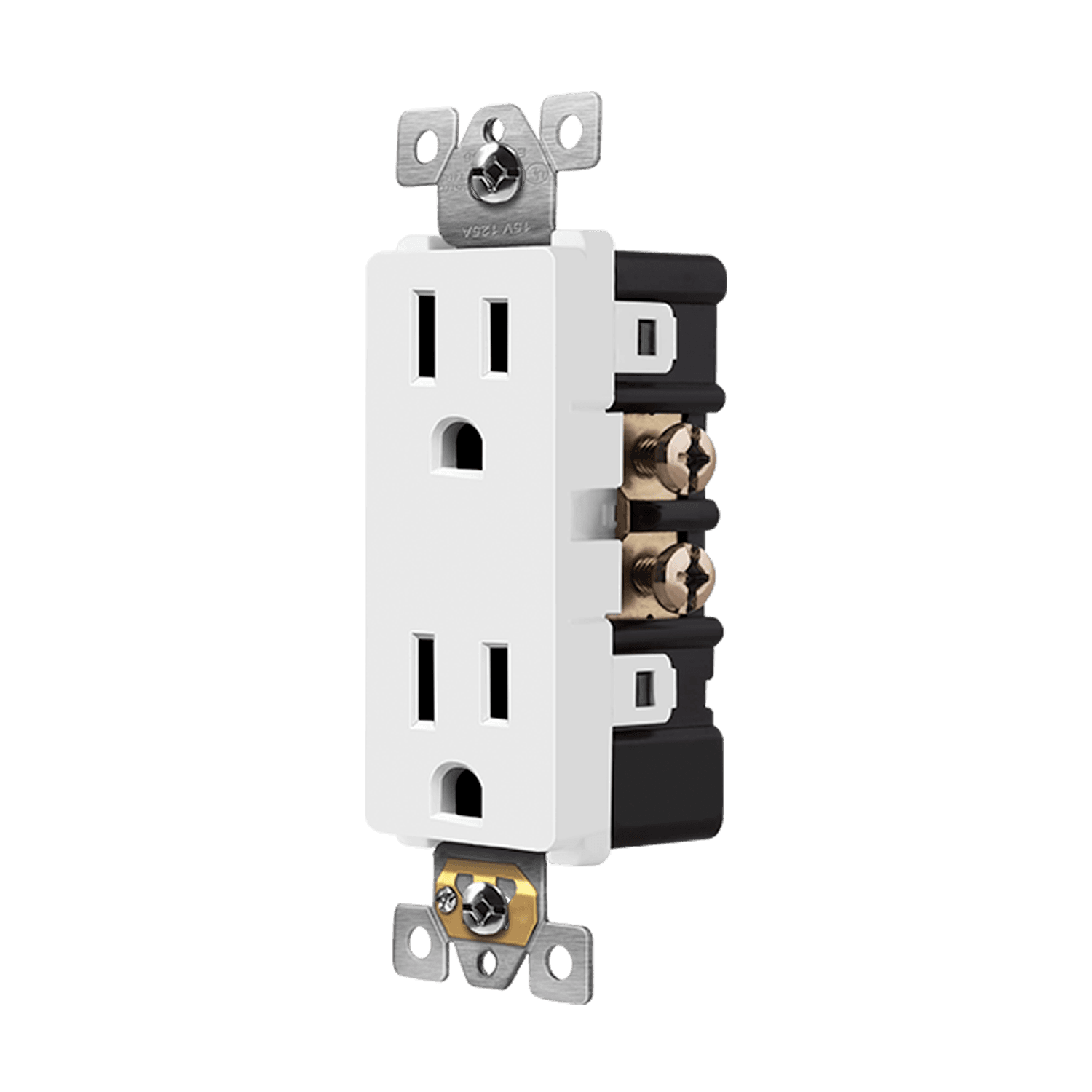

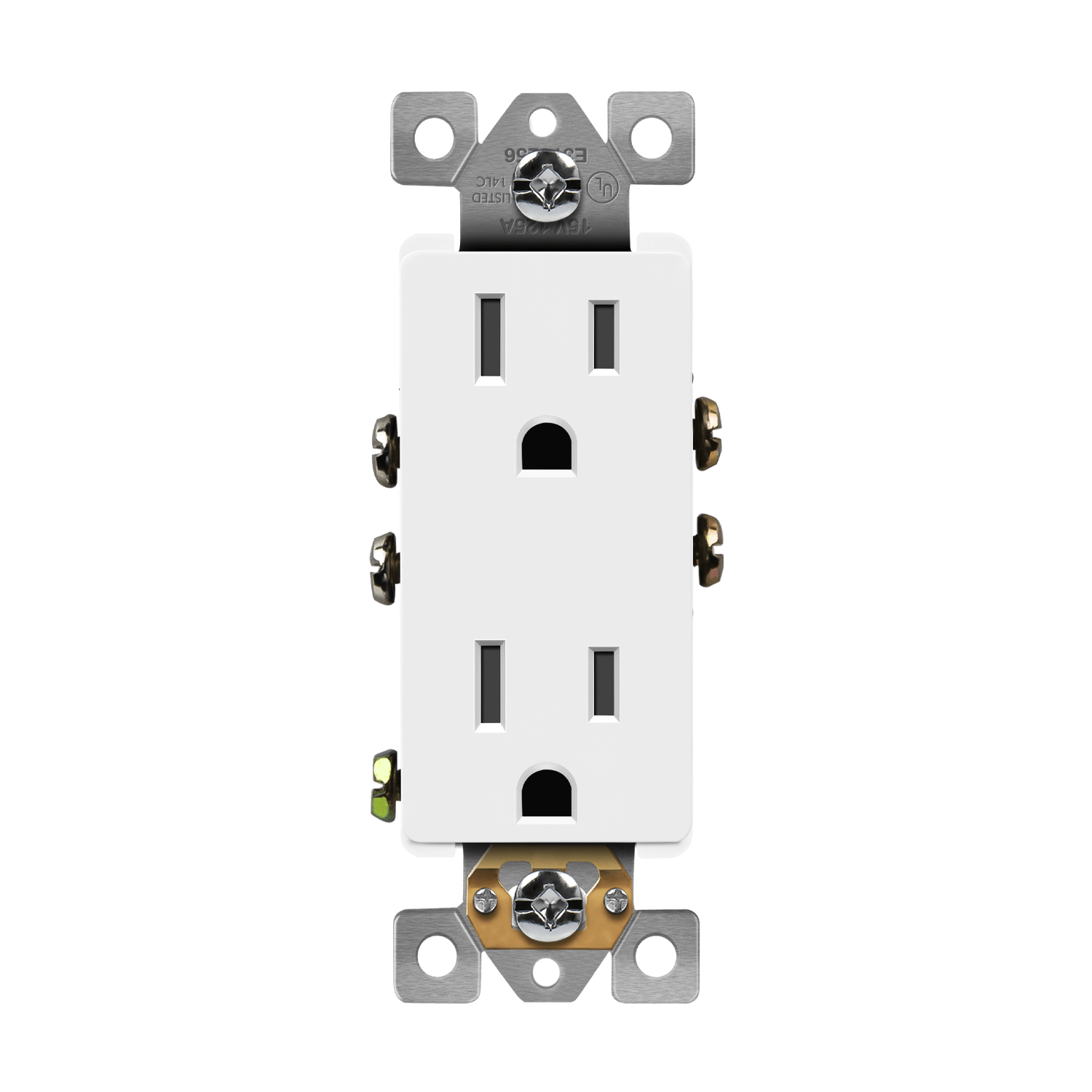

Residential Grade 15A Decorator Style Self-Grounding Duplex Receptacle
61501SKU: 61501-W
Self-grounding receptacles are made of high-impact resistant polycarbonate thermoplastic for long service lives. The shallow body design is for maximum wiring capability, with backstab or side options available. These residential grade receptacles are suitable for use in homes, apartments and condominiums. They are also applicable for commercial use in corporate buildings, hotels, restaurants and locations that only require a 15 amp outlet.
Available Colors
Made of thermoplastic material
Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Optional grounding with self-grounding clip or green terminal screw
Break-off tabs for easy two-circuit conversion
Push-in #14 AWG Cu solid wire for 15A branch circuit only
Removable yoke tabs for ideal alignment
Terminal screws backed out ready for wiring
Combination Slot/Phillips head mounting and terminal screws ease installation
Heavy-duty impact resistant thermoplastic construction for long service life in commercial applications
Back and side-wiring terminals accept both solid and stranded wire to ease installation
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
Compliant with 2017 NEC Article 406.12
