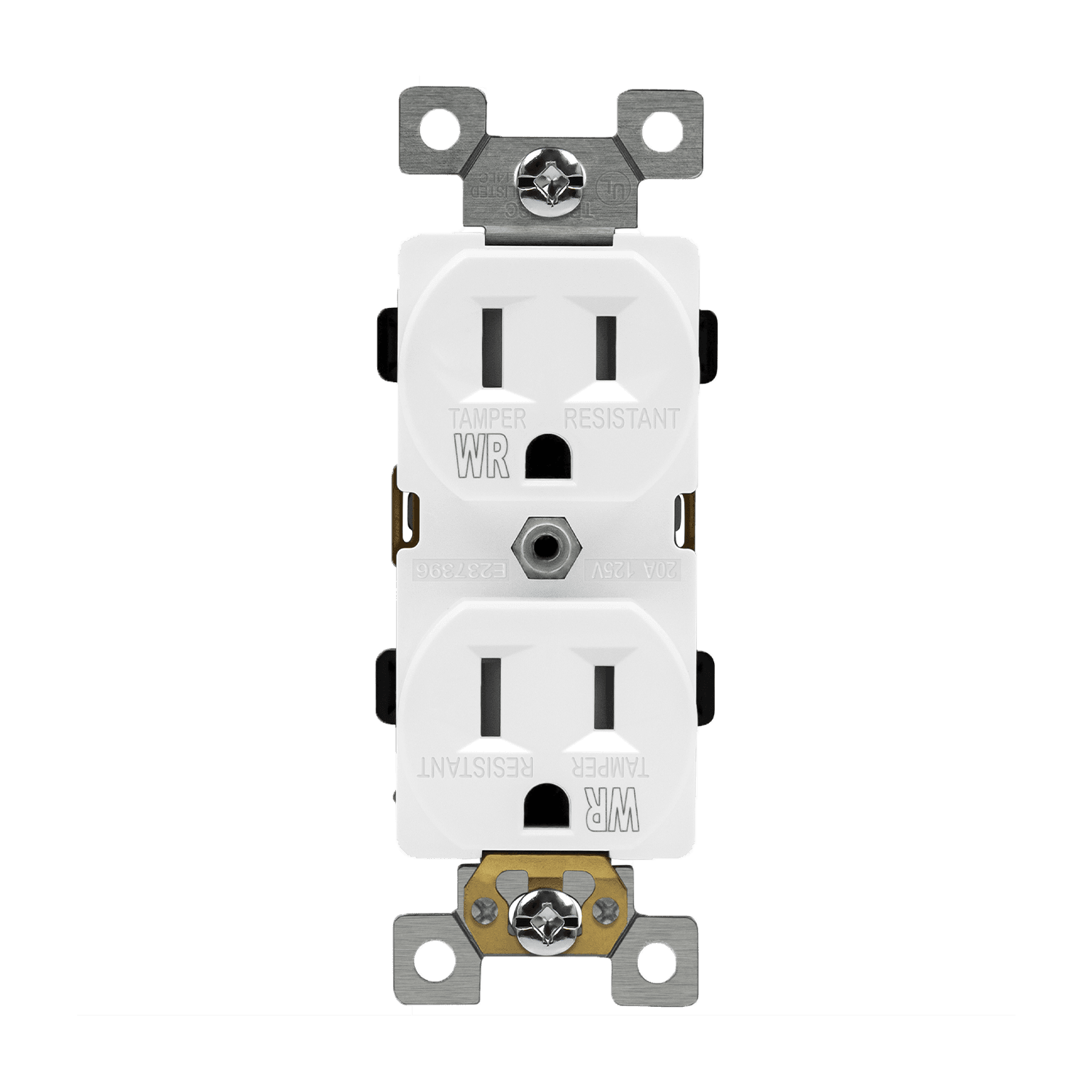

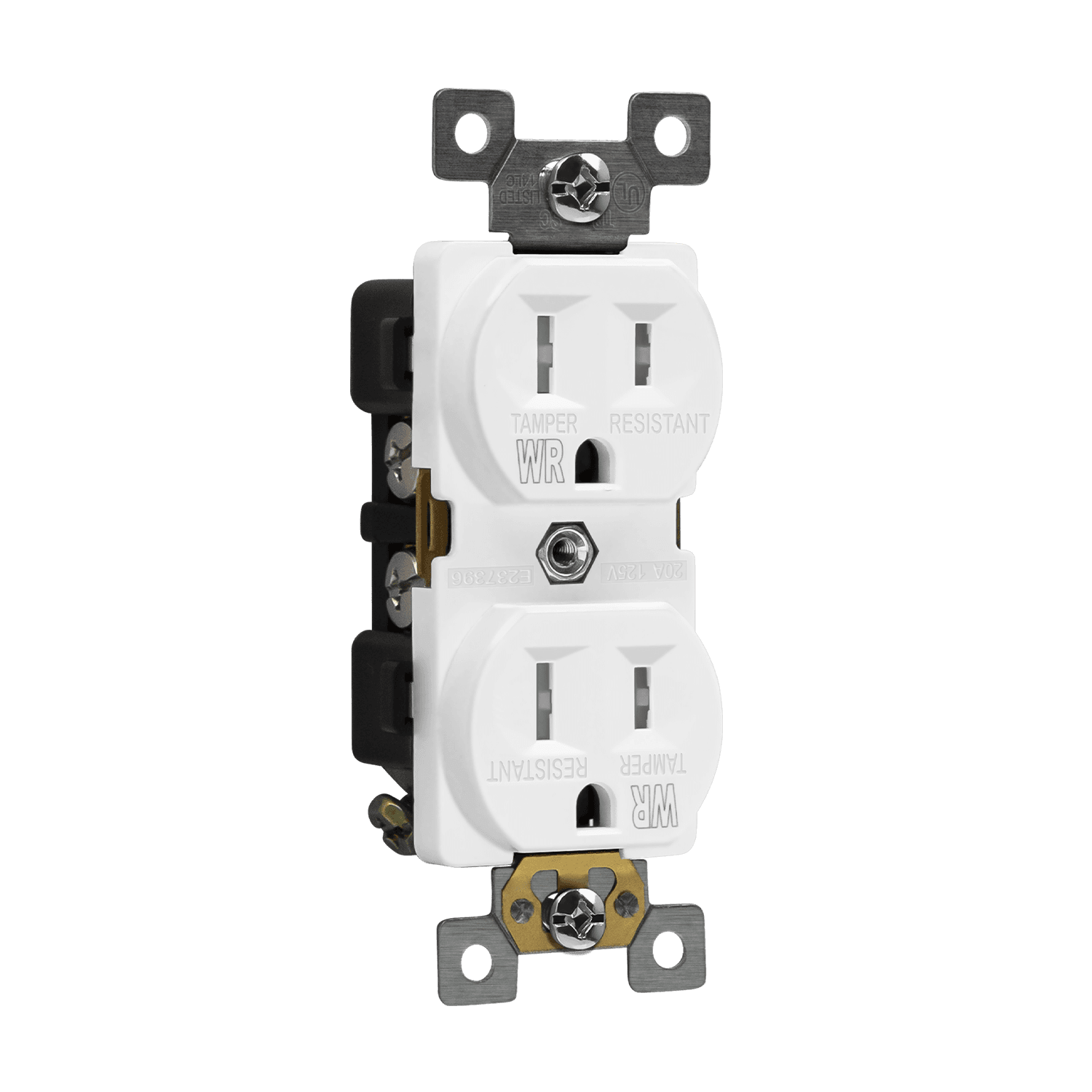

Residential Grade 15A Tamper and Weather Resistant Duplex Receptacle, 5-15R
61580-TWRSKU: 61580-TWR-W
The 61580-TWR is a tamper resistant, weatherproof electrical outlet that is perfect for any modern home. This indoor and outdoor duplex receptacle features a durable body made from high-quality materials to endure physically demanding applications. Tamper-resistant shutters prevent insertion of foreign objects into the device. This waterproof wall outlet comes in gray or white, is easy to install, and is perfect for the patio, garage, backyard shed, pool house, or restroom.
Available Colors
Made of thermoplastic material
Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Optional grounding with self-grounding clip or green terminal screw
Automatically ground to the metal outlet box
Break-off tabs for easy two-circuit conversion
Push-in #14 AWG Cu solid wire for 15A branch circuit only
Shallow design for maximum wiring room
Easy-access green hex head grounding screw
Captive mounting screws
Removable yoke tabs for ideal alignment
Large head combination screws for fast wiring
Terminal screws backed out ready for wiring
Combination Slot/Phillips head mounting and terminal screws ease installation
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
