Residential Grade 15A Tamper-Resistant Duplex Receptacle - White
1 / 2

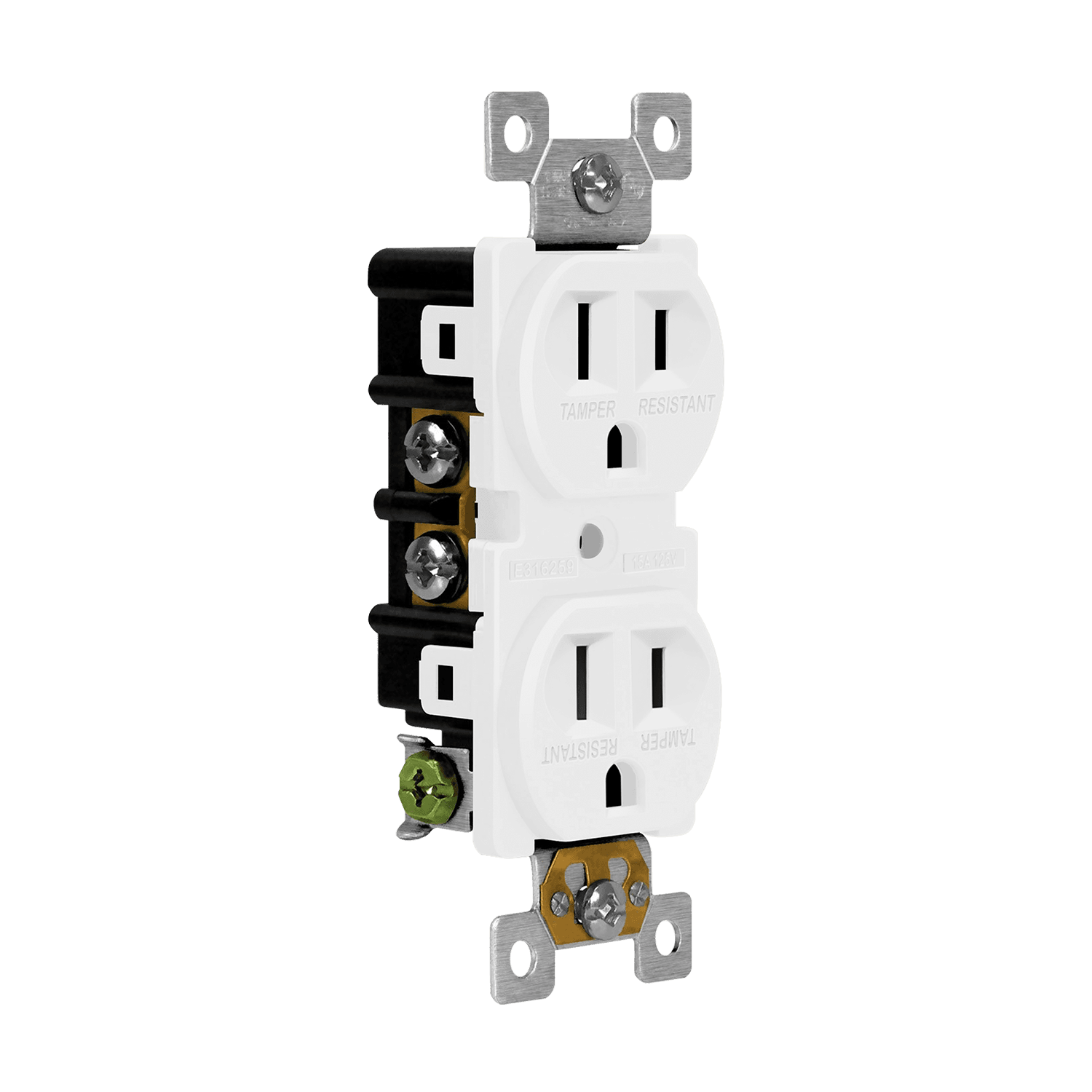

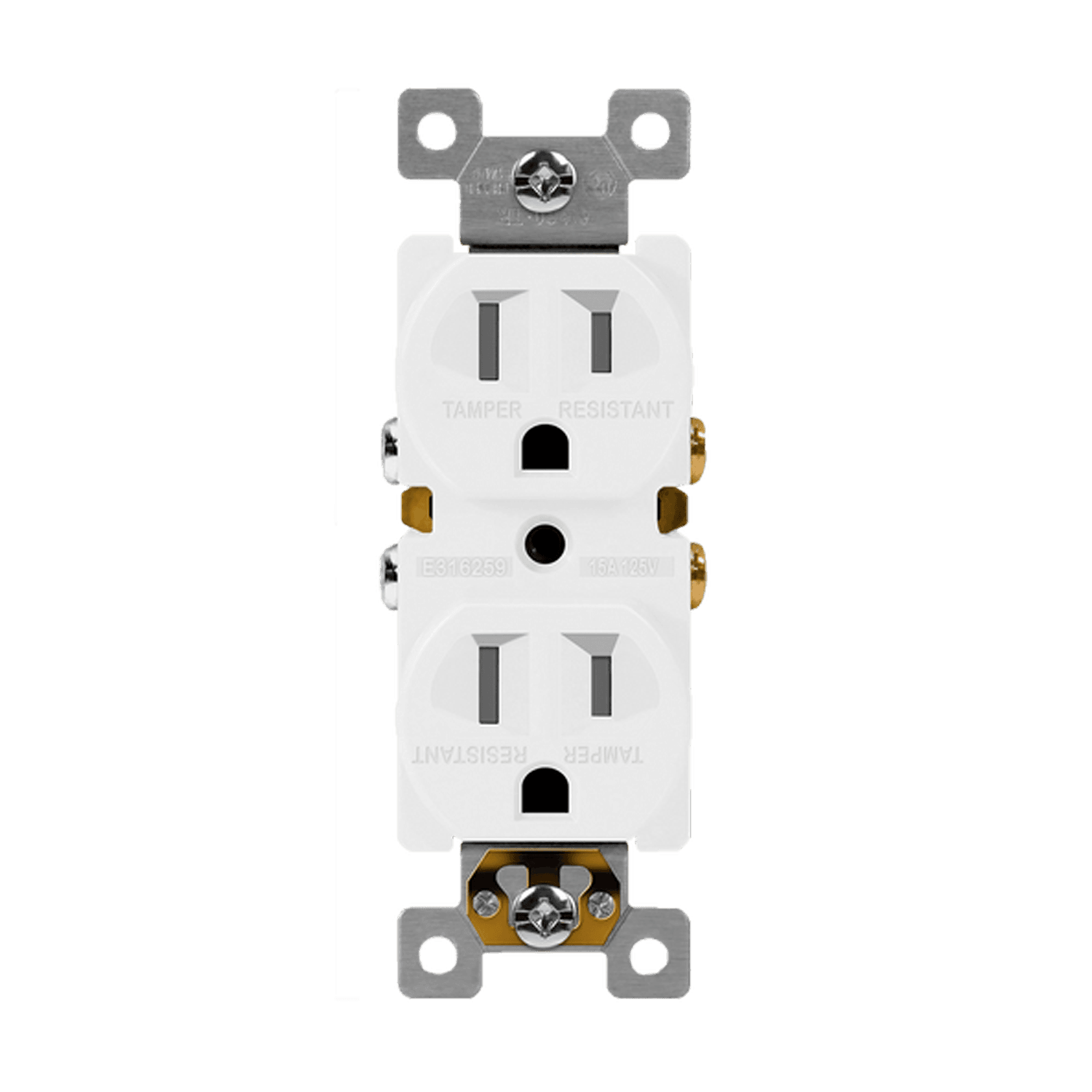

Residential Grade 15A Tamper-Resistant Duplex Receptacle

61580-TRSKU: 61580-TR-W

Self-grounding tamper-resistant receptacles are made of high-impact resistant polycarbonate thermoplastic for long service lives. The shallow body design is for maximum wiring capability, with backstab or side options available. Tamper-resistant shutters prevent insertion of foreign objects into the device. These residential grade receptacles are suitable for use in homes, apartments and condominiums. They are also applicable for commercial use in corporate buildings, hotels, restaurants and locations that only require a 15 amp outlet.

Available Colors

Made of thermoplastic material
Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Optional grounding with self-grounding clip or green terminal screw
Automatically ground to the metal outlet box
Break-off tabs for easy two-circuit conversion
Push-in #14 AWG Cu solid wire for 15A branch circuit only
Shallow design for maximum wiring room
Easy-access green hex head grounding screw
Captive mounting screws
Removable yoke tabs for ideal alignment
Large head combination screws for fast wiring
Terminal screws backed out ready for wiring
Combination Slot/Phillips head mounting and terminal screws ease installation
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
