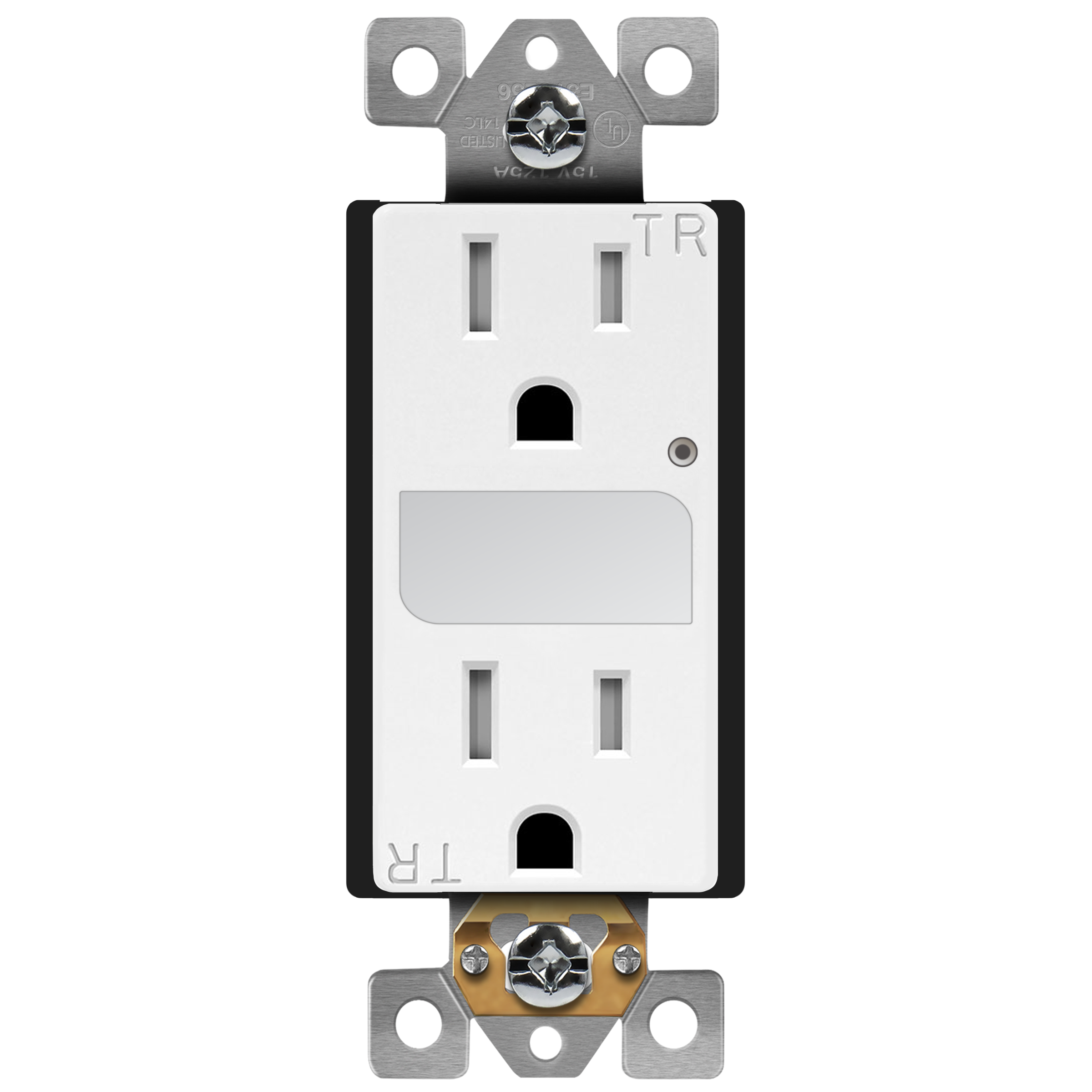

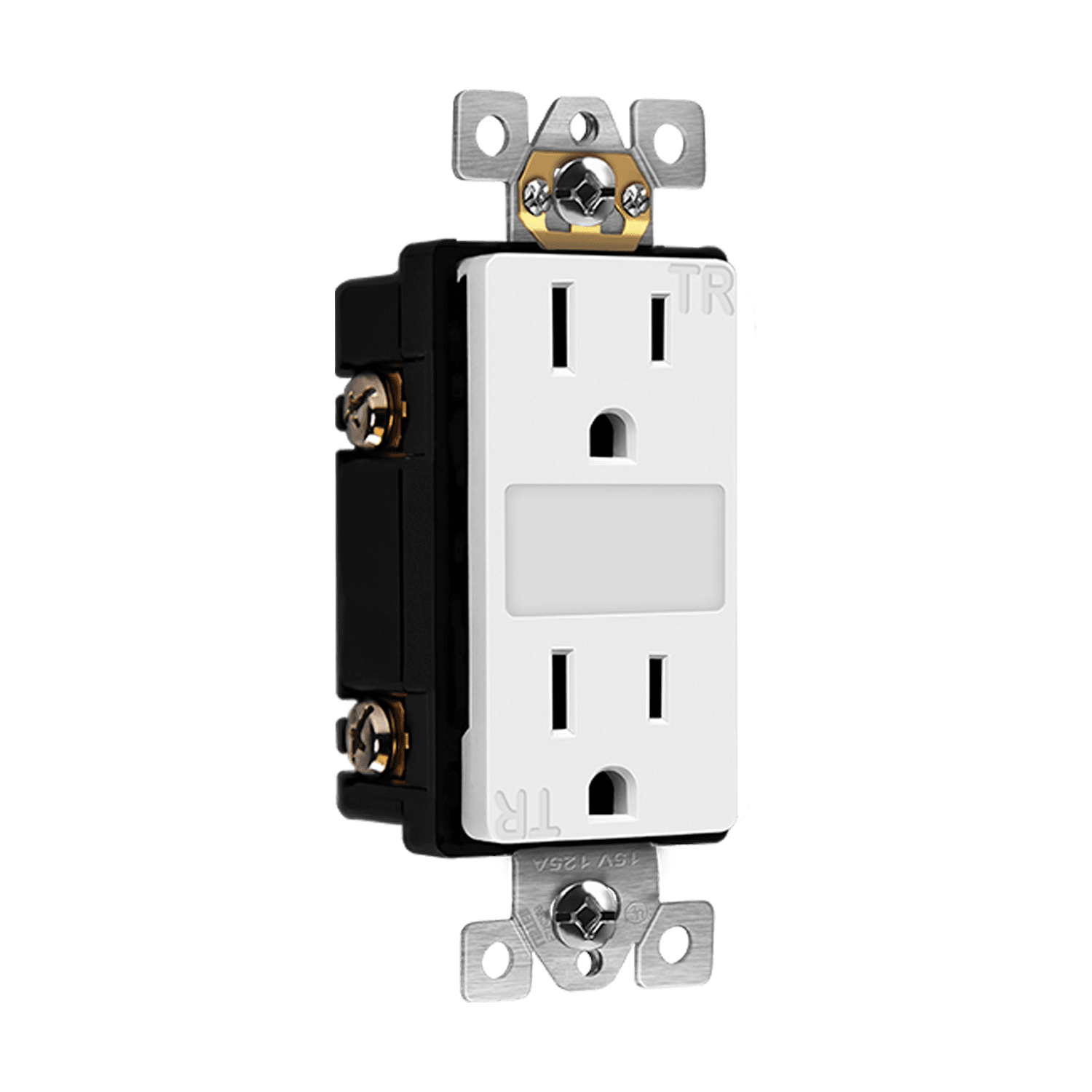

Residential Grade 15A Tamper-Resistant Duplex Receptacle with Guide Light
61501-TRGLSKU: 61501-TRGL-W
This duplex receptacle is made of high-impact resistant polycarbonate thermoplastic for a long service life. It is equipped with two tamper-resistant outlets and an LED guide light. The shallow design leaves ample room in the box for wiring. It features removable yoke tabs for ideal alignment. It is ideal for use in hallways, children’s rooms, elderly care areas, and kitchens.
Available Colors
Clearly visible ”TR” markings on the face of device
High-impact resistant thermoplastic cover and body for long service life in commercial applications
Green grounding screw and self-grounding clip for automatic grounding connection in grounded metal wall box
Shallow design for maximum wiring room in box
Removable yoke tabs for ideal alignment
Various colors available
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
Compliant with 2017 NEC Article 406.12
