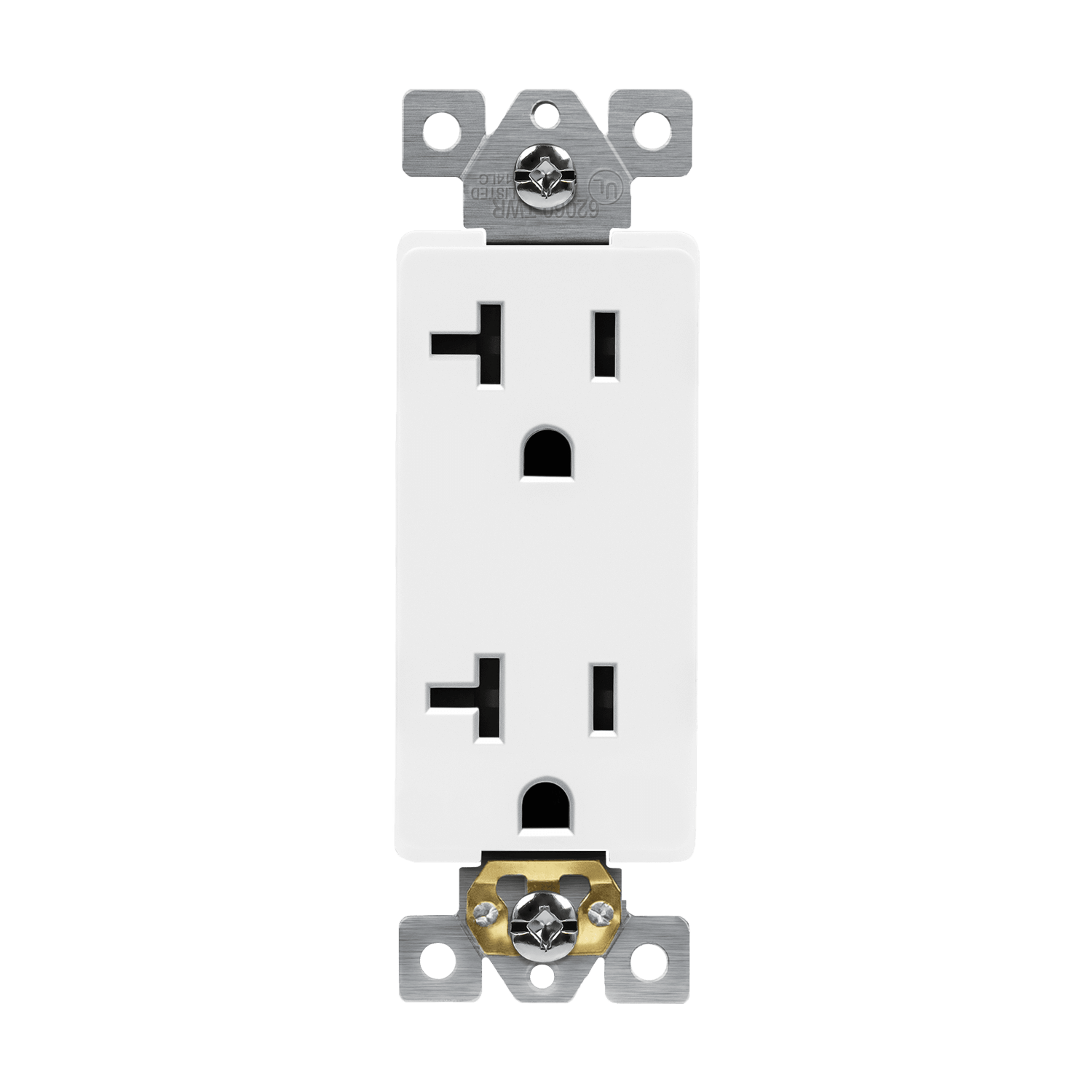

Residential Grade 20A Decorator Receptacle, 5-20R

62001SKU: 62001-W

Residential grade receptacles are rated for a variety of standard configurations. Each receptacle is equipped with break-off plaster ears and tabs to allow for easy alignment and 2-circuit conversion. All decorator receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room.

Available Colors

Made of thermoplastic material

Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects

Optional grounding with self-grounding clip or green terminal screw

Break-off tabs for easy two-circuit conversion

Push-in #14 AWG Cu solid wire for 15A branch circuit only

Removable yoke tabs for ideal alignment

Terminal screws backed out ready for wiring

Combination Slot/Phillips head mounting and terminal screws ease installation

Heavy-duty impact resistant thermoplastic construction for long service life in commercial applications

Back and side-wiring terminals accept both solid and stranded wire to ease installation

2-year warranty

Environmental: flammability UL94, V2 rating

Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous

UL listed

Compliant with 2017 NEC Article 406.12
